nrgplusplus#

Efficient Numerical Renormalization Group (NRG) calculations in Modern C++

nrgplusplus is a high-performance C++ library for solving quantum impurity problems using the Numerical Renormalization Group method. It provides comprehensive tools for studying strongly correlated electron systems with flexible model definitions and optimized numerical performance.

Supported Systems:

  • Kondo effect and quantum impurities

  • Single Impurity Anderson Model (SIAM) — a fundamental model in condensed matter physics

  • Multi-channel and multi-impurity systems — complex many-body problems

  • Superconducting proximity effects — magnetic impurities in superconductors, Yu-Shiba-Rusinov states

  • Free particles and resonant levels — non-interacting reference systems

  • Custom models — fully extensible architecture for user-defined Hamiltonians

Key Capabilities:

  • Dynamic spectral functions and correlation functions via Full Density Matrix NRG (FDM-NRG)

  • Temperature-dependent thermodynamic quantities (entropy, susceptibility, specific heat)

  • Flexible quantum number symmetries and block-diagonalization

  • Native HDF5 data persistence for large-scale computations

  • Modern C++20 design with efficient memory management

  • BLAS/LAPACK optimization for linear algebra operations

Architecture Overview#

Architecture of the nrgplusplus library

Core Components:

  • nrgcore: Main NRG solver class that manages iterations

  • Impurity models: Define the quantum impurity (e.g., Anderson model, Kondo model)

  • Bath models: Define the environment or conduction band

  • Symmetries: Block-diagonalize by conserved quantum numbers (charge, spin, etc.)

Every impurity or bath model must provide:

  • std::vector<qOperator> f_dag_operator — Fermionic creation operators

  • std::vector<std::vector<double>> eigenvalues_Q — Eigenvalues per quantum number sector

  • std::vector<double> chi_Q — Fermion signs (parity)

  • std::vector<std::vector<int>> n_Q — Quantum numbers labeling each sector

Available Models and Examples#

The library includes 10 complete, working examples covering a range of physical systems:

Renormalization Group Flow:

  • rgflowSIAM — RG flow evolution for the Single Impurity Anderson Model

  • rgflowKondo — RG flow analysis of the Kondo effect with spin-flip scattering

Thermodynamic Properties:

  • entropySIAM — Temperature-dependent entropy for Anderson impurities

  • entropyKondo — Temperature evolution in Kondo systems

Spectral and Dynamic Properties:

  • fdmSpectrumSiam — Spectral function via Frequency Domain Mode for SIAM

  • fdmSpectrumTwoChannel — Multi-channel system spectral properties

Specialized Systems:

  • resonantLevel — Non-interacting resonant level model

  • twoChannelSiam — Multi-channel Anderson impurity system

  • rabiAnderson — Rabi oscillations coupled to Anderson impurity

  • freeModel — Free fermion model for testing and validation

Each example includes C++ source, CMake configuration, Python analysis scripts, and sample outputs. See the API Documentation for detailed class references and the Build Guide for compilation instructions.

Quick Start Example: Single Impurity Anderson Model (SIAM)#

Reference: Bulla et al., Rev. Mod. Phys. 80, 395 (2008)

1. Define the impurity and bath models:

// Impurity: single orbital with onsite energy and Hubbard U
spinhalf impurity(eps=-1.0, U_int=2.0);

// Bath: non-interacting conduction electrons
spinhalf bathModel(eps=0, U_int=0);

2. Create the NRG solver and configure:

nrgcore<spinhalf, spinhalf> siam(impurity, bathModel);
siam.set_parameters(1024);  // Keep up to 1024 states per iteration

3. Run NRG iterations:

h5stream::h5stream results("siam_output.h5");  // Save results to HDF5

double Lambda = 2.0;  // RG flow parameter
for (int iteration = 0; iteration < nMax; iteration++) {
  double V = 0.5;  // Impurity-bath coupling
  double rescale = (iteration > 0) ? std::sqrt(Lambda) : 1.0;

  siam.add_bath_site({V, V}, rescale);
  siam.update_internal_state();

  results.write(siam.all_eigenvalue, "iteration" + std::to_string(iteration));
}
results.close();

4. Visualize results:

Plot RG flow (see examples/rgflowSIAM/plot.py)

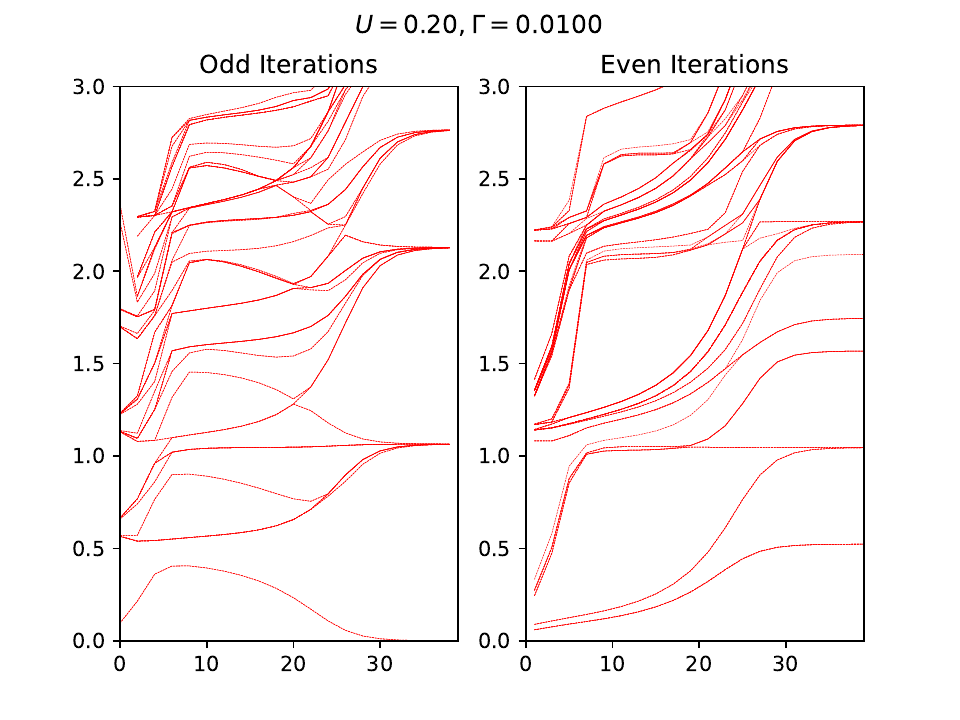

RG flow of SIAM energy levels

Theory and References#

This implementation follows the Numerical Renormalization Group method as described in the seminal review:

Bulla, R., Costi, T. A., & Pruschke, T. (2008). The Numerical Renormalization Group Method for Quantum Impurity Systems. Reviews of Modern Physics, 80(2), 395–450. https://doi.org/10.1103/RevModPhys.80.395

The method is particularly suited for: - Computing ground state and thermal properties - Calculating spectral functions and response functions - Studying universal properties in quantum impurity physics - Analyzing scaling behavior near quantum critical points

System Requirements#

Compiler & Build:

  • C++20 compatible compiler (GCC 10+, Clang 12+, or equivalent)

  • CMake 3.11 or later

Libraries:

  • BLAS (Basic Linear Algebra Subprograms)

  • LAPACK (Linear Algebra Package)

  • LAPACKE (C interface to LAPACK)

  • HDF5 (for data I/O)

Optional:

  • Python 3.11+ (for visualization and analysis scripts)

  • Sphinx (for building documentation)

See the Build Guide for detailed installation instructions for your system.

Getting Started#

New to nrgplusplus? Here’s how to get started:

  1. Installation & Build — Build Guide

  2. Quick Examples — Run the working examples in examples/

  3. API Reference — Detailed class and function documentation below
